Light, Powerful And Versatile

Electric Chain Hoist

Overview

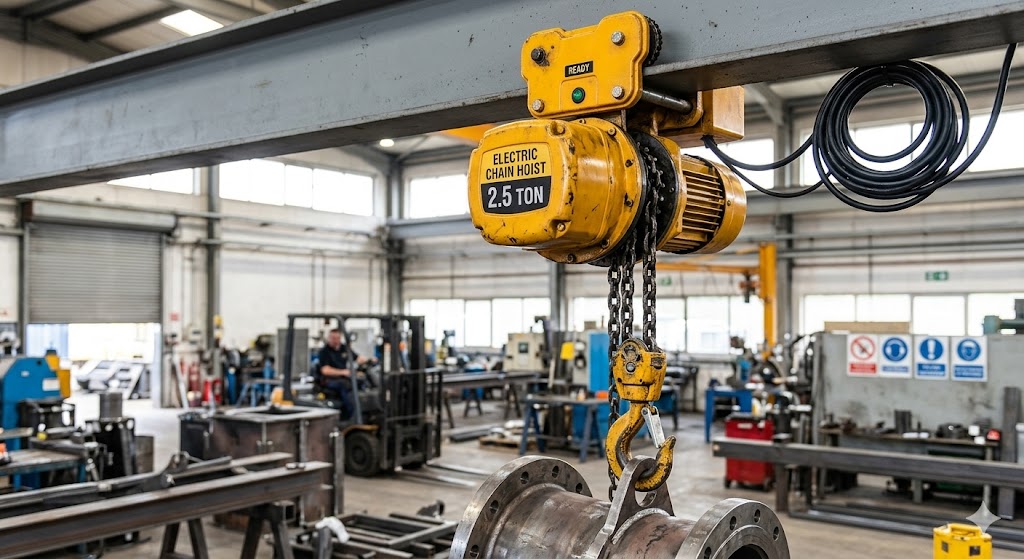

What Is an Electric Chain Hoist?

An electric chain hoist is a light, compact lifting device consisting of a motor, transmission mechanism, and chain wheel. Designed using advanced international technology, it delivers fine workmanship and tight gear-to-gear fit for long-lasting, reliable performance.

Compared to traditional wire rope hoists, electric chain hoists are smaller, lighter, quieter, and more precise — while offering a longer service life under the same operating conditions.

  • Beautiful design, solid durability, international technology
  • Lifting height: 3 – 50 metres
  • Lifting capacity: 0.5 – 35 tonnes
  • Hot-quenched internal gears for enhanced wear resistance
  • Suitable for I-beams, curved rails, jib cranes and fixed lifting points
Request a Quote →
Electric Chain Hoist

Product Range

Types of Electric Chain Hoists

We supply a full range of electric chain hoist types to match your working conditions — from standard hook-mounted units to explosion-proof and stage hoists.

Hook Type Electric Chain Hoist
Fixed Mount

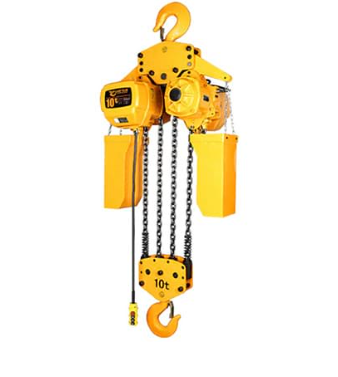

Hook Type Electric Chain Hoist

Widely used in workshops, warehouses, logistics and construction. Fixed at a single point via top hook for straightforward up-and-down lifting.

  • Capacity0.5 – 5 tons
  • Lift HeightUp to 50 m
  • Power≥220V, Single or 3-Phase
Hook Type Electric Chain Hoist
Manual Travel

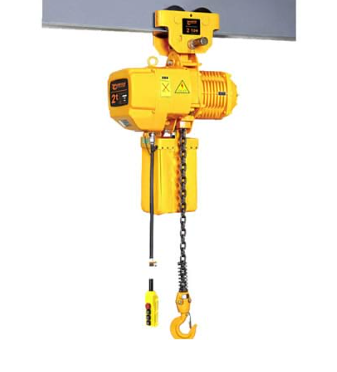

Chain Hoist with Manual Trolley

Moves horizontally along an I-beam or crane girder by manual push. A highly cost-effective solution where powered travel isn't required.

  • Capacity0.5 – 5 tons
  • Lift HeightUp to 50 m
  • Power≥220V, Single or 3-Phase
Hook Type Electric Chain Hoist
Most Popular

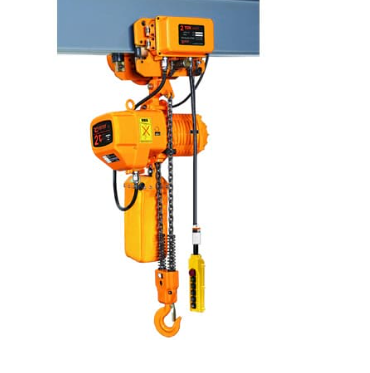

Chain Hoist with Motorized Trolley

The most widely used type. Stable, efficient, and accurate — with large capacity and support for curved tracks. Suitable for virtually all standard working conditions.

  • Capacity0.5 – 25 tons
  • Lift HeightUp to 50 m
  • Power≥220V, 3-Phase
Hook Type Electric Chain Hoist
Space-Saving

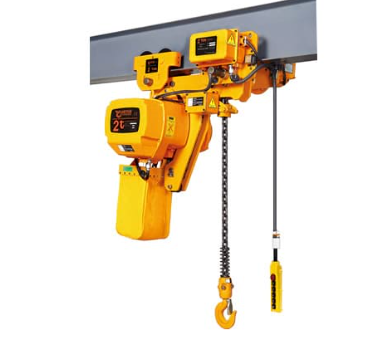

Low Headroom Electric Chain Hoist

Purpose-built for height-restricted environments. Maximises lift height in spaces where clearance above the beam is limited.

  • Capacity0.5 – 10 tons
  • Lift HeightUp to 50 m
  • Power≥220V, 3-Phase
Hook Type Electric Chain Hoist
High Performance

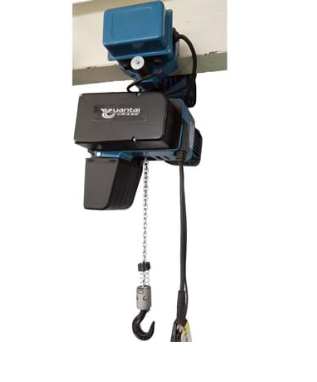

European Electric Chain Hoist

Designed with humanised ergonomics and high safety reliability. Built to maximise productivity and achieve peak operational efficiency on demanding applications.

  • Capacity0.125 – 20 tons
  • Lift HeightUp to 30 m
  • Power220–480V, 3-Phase
Hook Type Electric Chain Hoist
Hazardous Environments

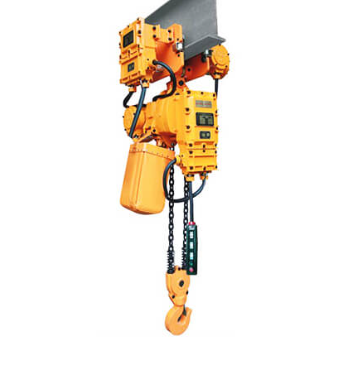

Explosion-Proof Chain Hoist

For dust-proof and explosion-proof requirements. Axial three-part assembly (transmission, hanger, motor) for excellent sealing — ideal for outdoor and dusty environments.

  • Capacity0.5 – 32 tons
  • Lift Height3 / 6 / 9 / 12 / 18 m
  • Power220–480V 50/60Hz 3-Phase
Hook Type Electric Chain Hoist
Entertainment

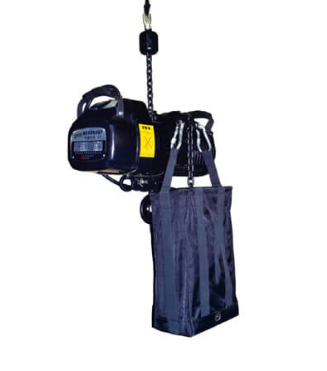

Stage Electric Chain Hoist

Ergonomic solution for theatres and concert halls — precisely positions speakers, lighting rigs, stage sets, curtains and scenery with speed and accuracy.

  • Capacity0.25 – 2 tons
  • Lift HeightUp to 25 m
  • Power220–480V 50/60Hz 3-Phase
Hook Type Electric Chain Hoist
Production Lines

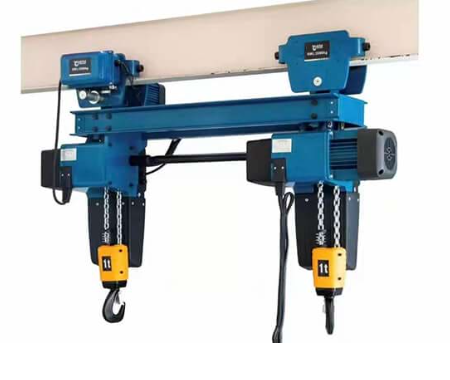

Double Hook Electric Chain Hoist

Two chain hoists connected in series via a shared trolley and reducer. Hook spacing is customised to application. Common in mould, automotive, forging and coating lines.

  • Capacity0.125 – 2 tons
  • Lift HeightUp to 25 m
  • Power220–480V 50/60Hz 3-Phase

Which Should You Choose?

Chain Hoist vs Wire Rope Hoist

Not sure which type of electric hoist suits your needs? Here's a quick comparison to help you decide.

Specification Electric Chain Hoist Electric Wire Rope Hoist
Drive Mechanism Sprockets & endless chain Drums, ropes & pulleys
Size (same capacity) Compact & small Larger
Weight Light Heavy
Motor Type Conical motor Cylindrical motor
Noise Level Low Higher
Lifting Capacity 0.5 – 35 tons 0.5 – 63 tons
Speed Controlled / Slower Faster
Lifting Height 1 – 50 m 1 – 120 m
Energy Consumption Low Higher
Maintenance Cost Moderate Lower

Selection Guide

Which Hoist Is Right for You?

Different working conditions require different hoist types. Use this guide to identify the best match for your application.

Normal Use
  • Hook Type Chain Hoist
  • Manual Trolley Hoist
  • Motorized Trolley Hoist
  • Low Headroom Hoist
  • European Chain Hoist
Height-Restricted Spaces
  • Low Headroom Chain Hoist
  • European Chain Hoist
Hazardous Environments
  • Explosion-Proof Chain Hoist
  • (Dust-proof & ATEX-rated)
Theatres & Events
  • Stage Electric Chain Hoist
  • (Speakers, lighting, curtains, scenery)

Where They're Used

Applications Across Every Industry

Electric chain hoists are used as lifting mechanisms across a broad range of industries — typically mounted on monorails, single girder or double beam crane systems.

Mechanical Processing
General Manufacturing
Automobile Industry
Aviation Industry
Metals Industry
Paper & Pulping
Power & Energy
Waste to Energy & Biomass
Petroleum & Gas
Mining
Entertainment Industry
Warehousing & Logistics

Ready to Order?

Get a Quote for Your Chain Hoist

Tell us your lifting capacity, height, and working conditions — our team will recommend the right hoist and provide a competitive quotation.

Send an Enquiry All Products
